Iranian Threat Agent OilRig Delivers Digitally Signed Malware, Impersonates University of Oxford

By Clearsky

January 5, 2017

Campaigns

Iranian threat agent OilRig has been targeting multiple organisations in Israel and other countries in the Middle East since the end of 2015. In recent attacks they set up a fake VPN Web Portal and targeted at least five Israeli IT vendors, several financial institutes, and the Israeli Post Office.

Later, the attackers set up two fake websites pretending to be a University of Oxford conference sign-up page and a job application website. In these websites they hosted malware that was digitally signed with a valid, likely stolen code signing certificate

Based on VirusTotal uploads, malicious documents content, and known victims – other targeted organisations are located in Turkey, Qatar, Kuwait, United Arab Emirates, Saudi Arabia, and Lebanon.

Fake VPN Web Portal

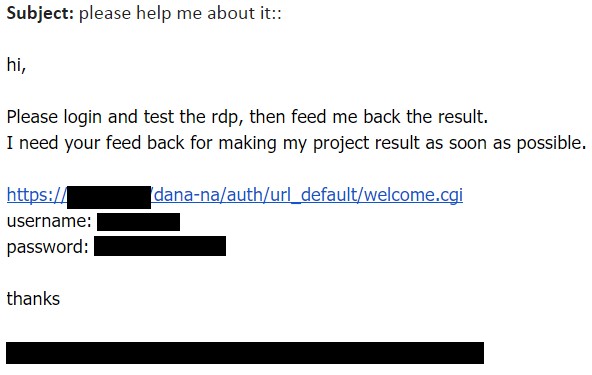

In one of the recent cases, the attackers sent the following email to individuals in targeted organisations:

The email was sent from a compromised account of an IT vendor. Similar emails were sent from other IT vendors in the same time period, suggesting the attackers had a foothold within their networks, or at least could get access to specific computers or email accounts.

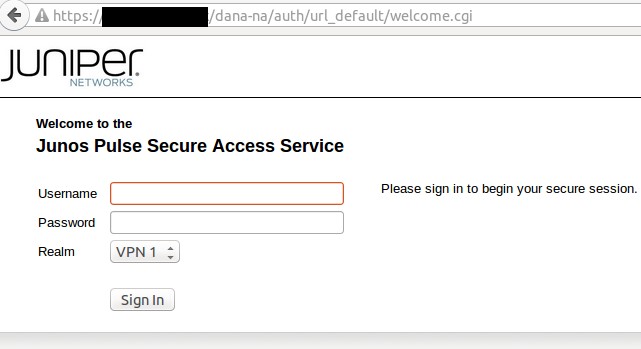

The link provided in the malicious email led to a fake VPN Web Portal:

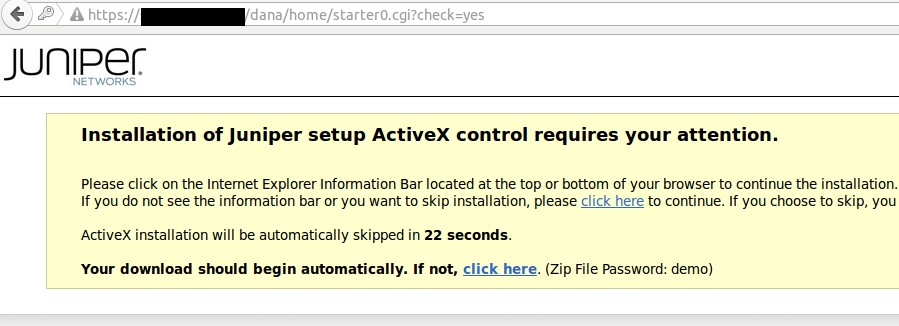

Upon logging in with the credentials provided in the email, the victim is presented with the following page:

The victim is asked to install the “VPN Client” (an .exe file), or, if download fails, to download a password protected zip (with the same .exe file inside).

The “VPN Client” is a legitimate Juniper VPN software bundled with Helminth,  a malware in use by the OilRig threat agnet:

JuniperSetupClientInstaller.exe
6a65d762fb548d2dc56cfde4842a4d3c (VirusTotal link)

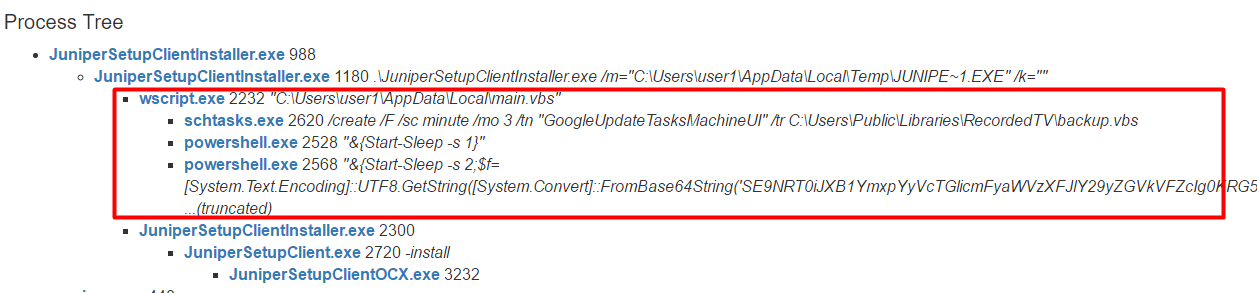

If the victim downloads and installs the file, their computer would get infected, while the legitimate VPN software is installed. The legitimate and the malicious installations can be seen in the process tree when the file is run in a Cuckoo sandbox. Malicious processes are marked red (click image to enlarge):

The following malicious files are dropped and run:

  • C:\ProgramData\{2ED05C38-D464-4188-BC7F-F6915DE8D764}\OFFLINE\9A189DFE\C7B7C186\main.vbs
    dcac79d7dc4365c6d742a49244e81fd0
  • C:\Users\Public\Libraries\RecordedTV\DnE.ps1
    7fe0cb5edc11861bc4313a6b04aeedb2
  • C:\Users\Public\Libraries\RecordedTV\DnS.ps1
    3920c11797ed7d489ca2a40201c66dd4
  • “C:\Windows\System32\schtasks.exe” /create /F /sc minute /mo 3 /tn “GoogleUpdateTasksMachineUI” /tr C:\Users\Public\Libraries\RecordedTV\backup.vbs
    7528c387f853d96420cf7e20f2ad1d32

Command and control server is located in the following domain:

tecsupport[.]in

A detailed analysis of the malware is provided in two posts by Palo Alto networks and in a post by FireEye, which wrote about previous campaigns by this threat agent.

(Note that Juniper networks was not compromised nor otherwise involved in the attack, except for the attackers using its name and publicly available software).

Digitally signed malware

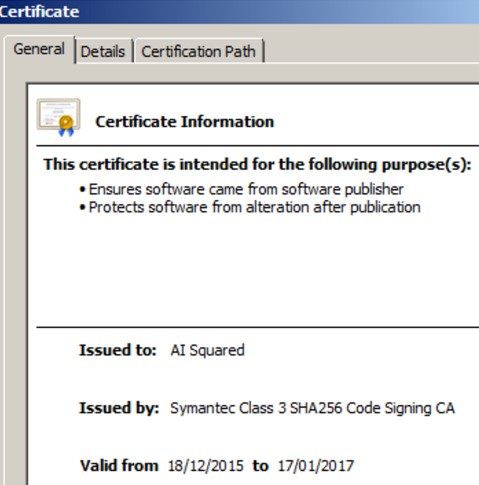

The entire bundle (VPN client and malware) was digitally signed with a valid code signing certificate issued by Symantec to AI Squared, a legitimate software company that develops accessibility software:

Thumbprint: F340C0D841F9D99DBC289151C13391000366631C
Serial number: 45 E4 7F 56 0B 01 B6 4E 68 39 5E 5D 79 2F 2E 09

Another Helminth sample, 1c23b3f11f933d98febfd5a92eb5c715, was signed with a different AI Squared code signing certificate:

Thumbprint: 92B8C0872BACDC226B9CE4D783D5CCAD61C6158A
Serial number:62 E0 44 E7 37 24 61 2D 79 4B 93 AF 97 46 13 48

This suggest that the attackers had got a hold of an Ai Squared signing key, potentially after compromising their network. Alternatively, the attackers might have got Symantec to issue them a certificate under Ai Squared’s name.

[Update 11 February 2017: In a notification in its website, Ai Squared says that “The digital certificate used to certify newer ZoomText and Window-Eyes software products has been compromised. As a result, our certificate will be revoked on or around January 26th”]

University of Oxford impersonation

The attackers registered four domains impersonating The University of Oxford.

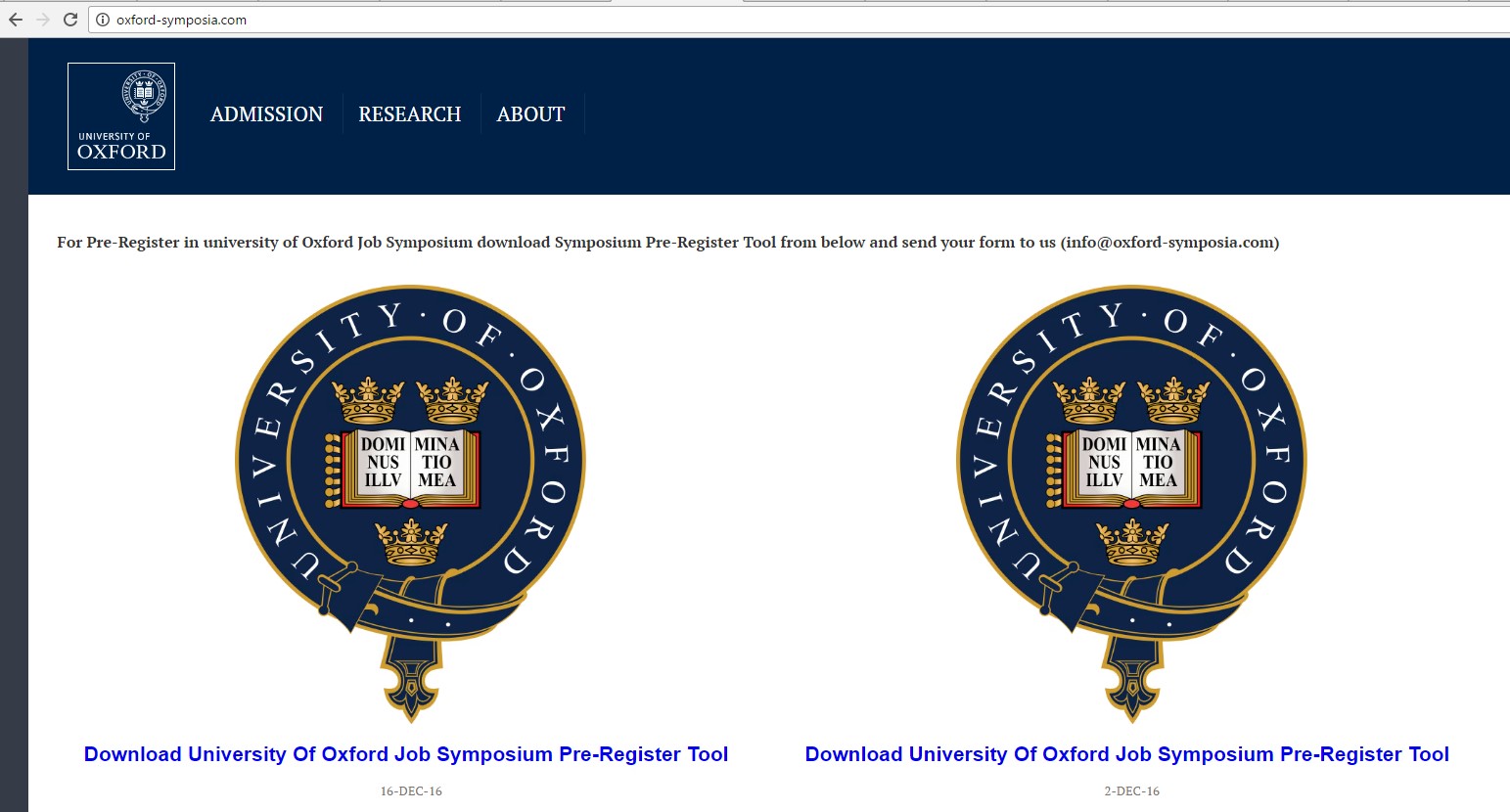

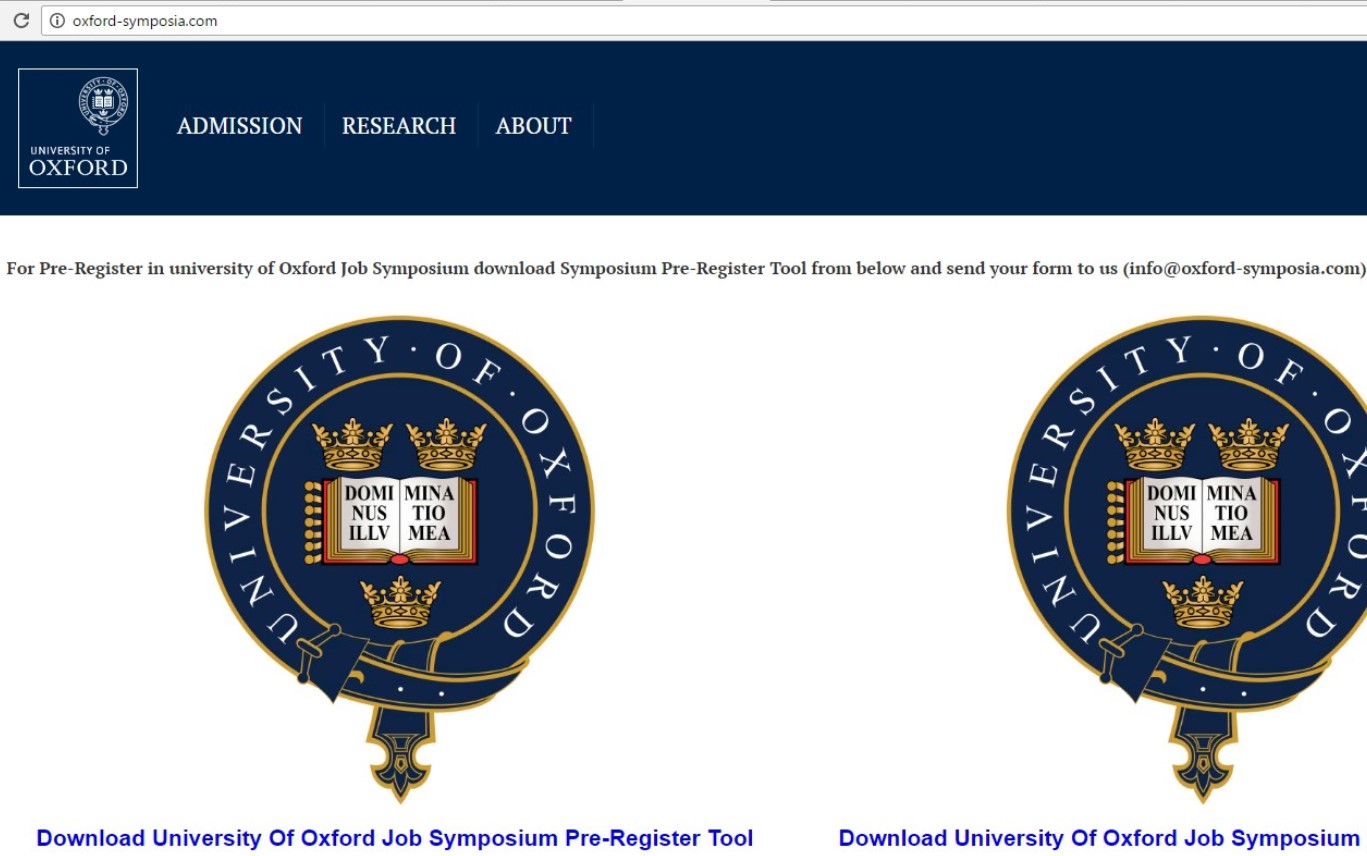

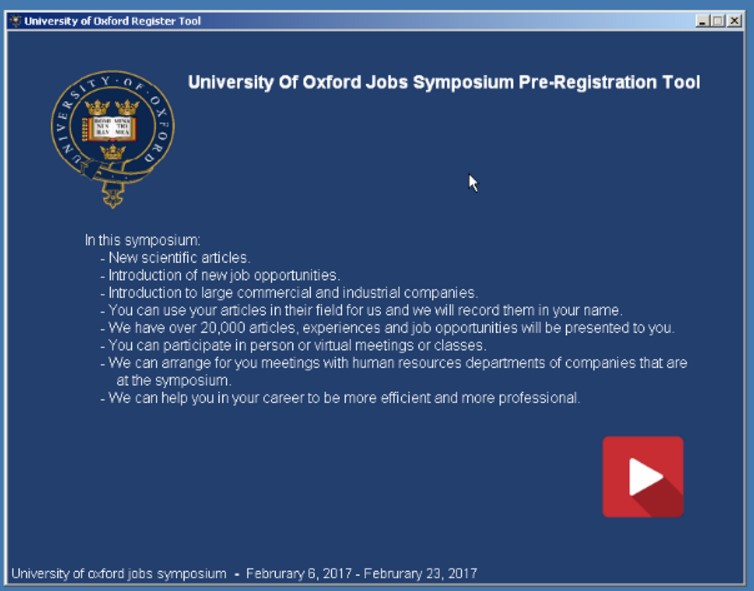

oxford-symposia[.]com, is a fake Oxford conference registration website. Visitors are asked to download the “University Of Oxford Job Symposium Pre-Register Tool”:

The downloaded file (which is also signed with an AI Squared certificate), is a fake registration tool built by the attackers:

OxfordSymposiumRegTool.exe
f77ee804de304f7c3ea6b87824684b33

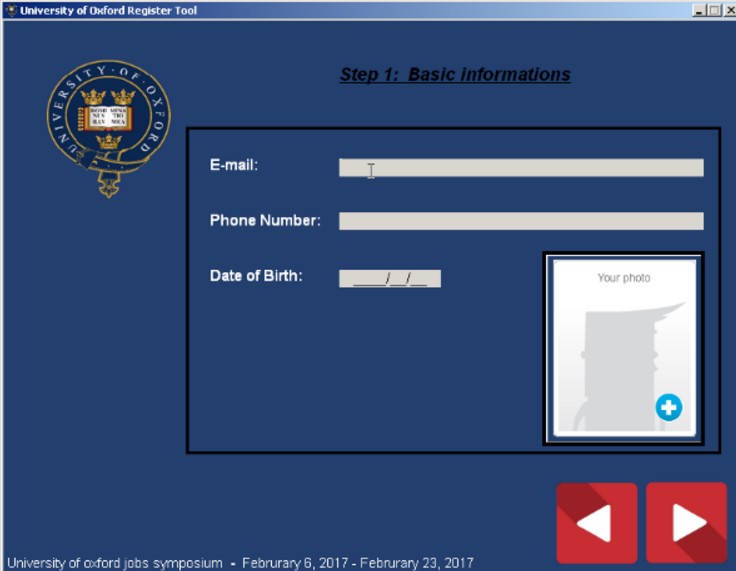

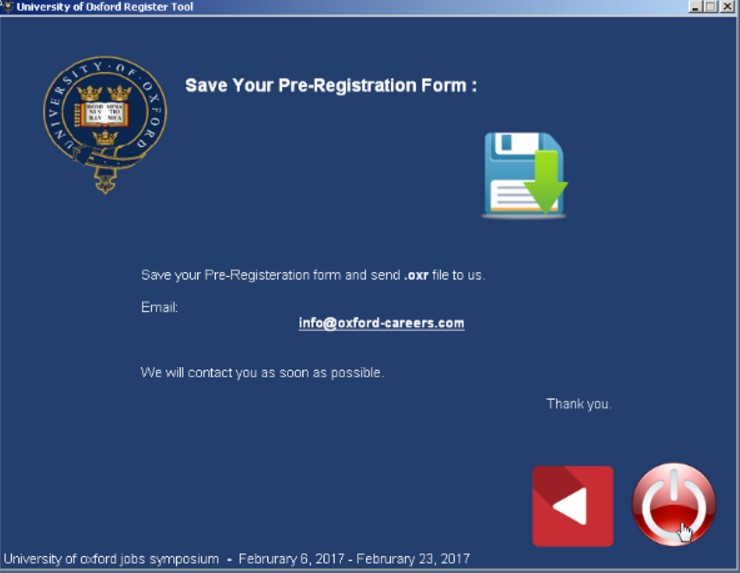

If run by the victim, their computer would get infected, while they are shown this registration process:

Note that after completing the “registration process”, the victim is asked to send the form to an email address in oxford-careers[.]com, which also belongs to the attackers.

Previously the fake website linked to the following documents in a third fake Oxford domain, oxford[.]in:

http://oxford[.]in/downloads/ls1.doc
http://oxford[.]in/downloads/ls2.doc
http://oxford[.]in/downloads/ls3.doc
http://oxford[.]in/downloads/ls4.do

The documents were unavailable during our research, and their content is unknown to us.

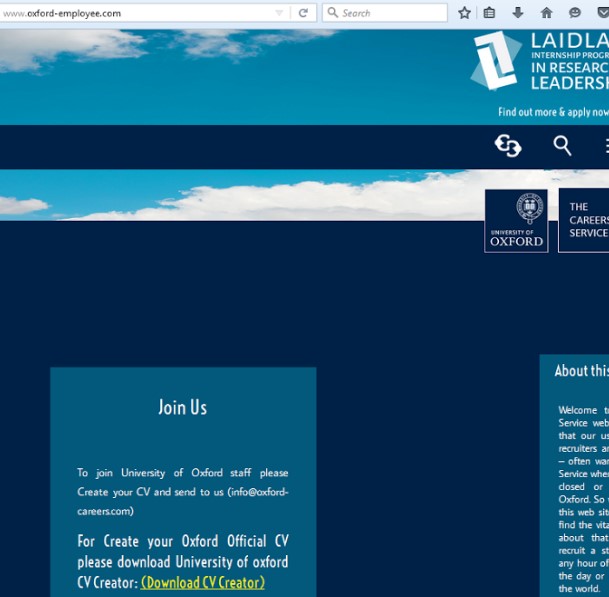

The attackers used a forth domain, oxford-employee[.]com, to host an “Oxford Job application” website:

Visitors are asked to “Download CV Creator” in order “To Join University of Oxford staff”. CV Creator is a malicious file hosted at http://www.oxford-careers[.]com/Files/OxfordCVCreator.exe :

OxfordCVCreator.exe
5713c3c01067c91771ac70e193ef5419

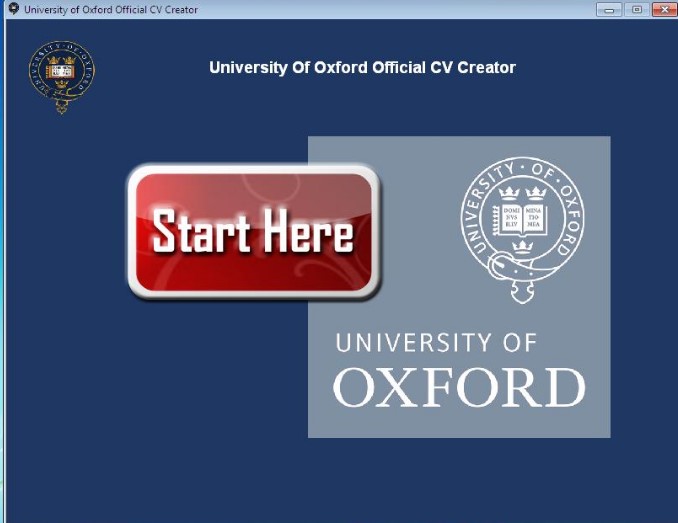

When run, the victim is again presented with a tool created by the attackers, this time a “University Of Oxford Official CV Creator”:

Both samples mentioned in this section had the following domain used for command and control:

updater[.]li

Other incidents

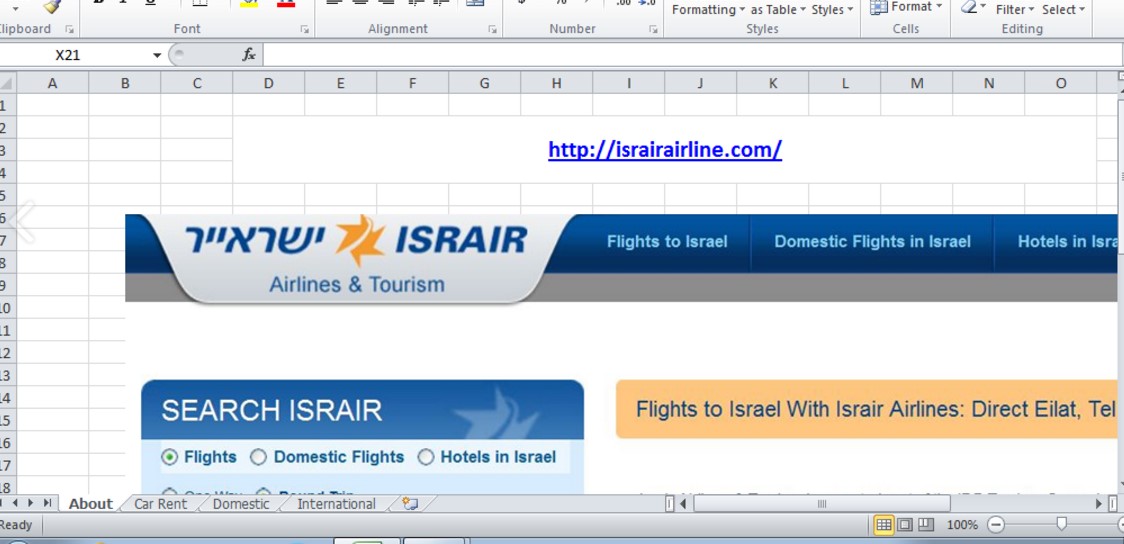

In an earlier incident, the attackers sent a malicious excel file impersonating Israir, an Israeli Airline  (the content of the file was copied from the company’s public website and we have no indication of it being compromised or targeted):

Israel Airline.xls
197c018922237828683783654d3c632a

The file had a macro that if enabled by the user would infect its computer.
In other incidents the attackers used the following files:

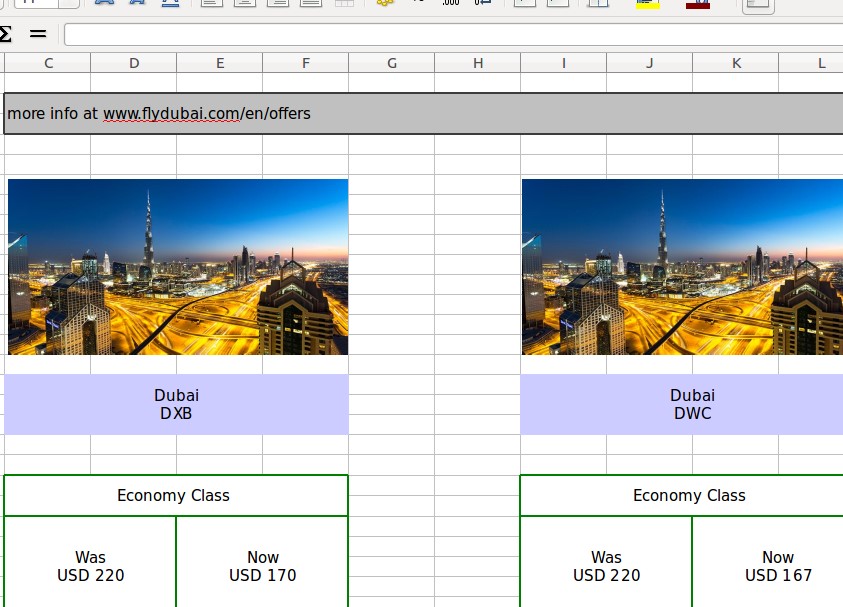

  • Special Offers.xls / Salary Employee 2016.xls
    f76443385fef159e6b73ad6bf7f086d6
  • pic.xls
    3a5fcba80c1fd685c4b5085d9d474118
  • People List.xls
    bd7d2efdb2a0f352c4b74f2b82e3c7bc
  • cv.xls
    72e046753f0496140b4aa389aee2e300
  • users.xls
    262bc259682cb48ce66a80dcc9a5d587
  • Employee Engagement Survey.xls
    726175e9aba421aa0f96cfc005664302
  • JuniperSetupClientInstaller.exe
    f8ce7e356e09de6a48dca9e51421b6f6
  • Project_Domain_No337.chm
    1792cdd0c5397ff5df445d73276d1a50 (undetected as malicious by any antivirus on VirusTotal)
  • gcaa_report_series15561.chm
    d50ab63f4034c6f5eb356e3326320e66 (undetected as malicious by any antivirus on VirusTotal)

Infrastructure overlap with Cadelle and Chafer

In December 2015, Symantec published a post about “two Iran-based attack groups that appear to be connected, Cadelle and Chafer” that  “have been using Backdoor.Cadelspy and Backdoor.Remexi to spy on Iranian individuals and Middle Eastern organizations”.

Backdoor.Remexi, one of the malware in use by Chafer, had the following  command and control host:

87pqxz159.dockerjsbin[.]com

Interestingly, IP address  83.142.230.138, which serve as a command and control address for an OilRig related sample (3a5fcba80c1fd685c4b5085d9d474118), was pointed to by 87pqxz159.dockerjsbin[.]com as well.

This suggest that the two groups may actually be the same entity, or that they share resources in one why or another.

Indicators of compromise

Indicators file: oilrig-indicators.csv (also available on PassiveTotal)

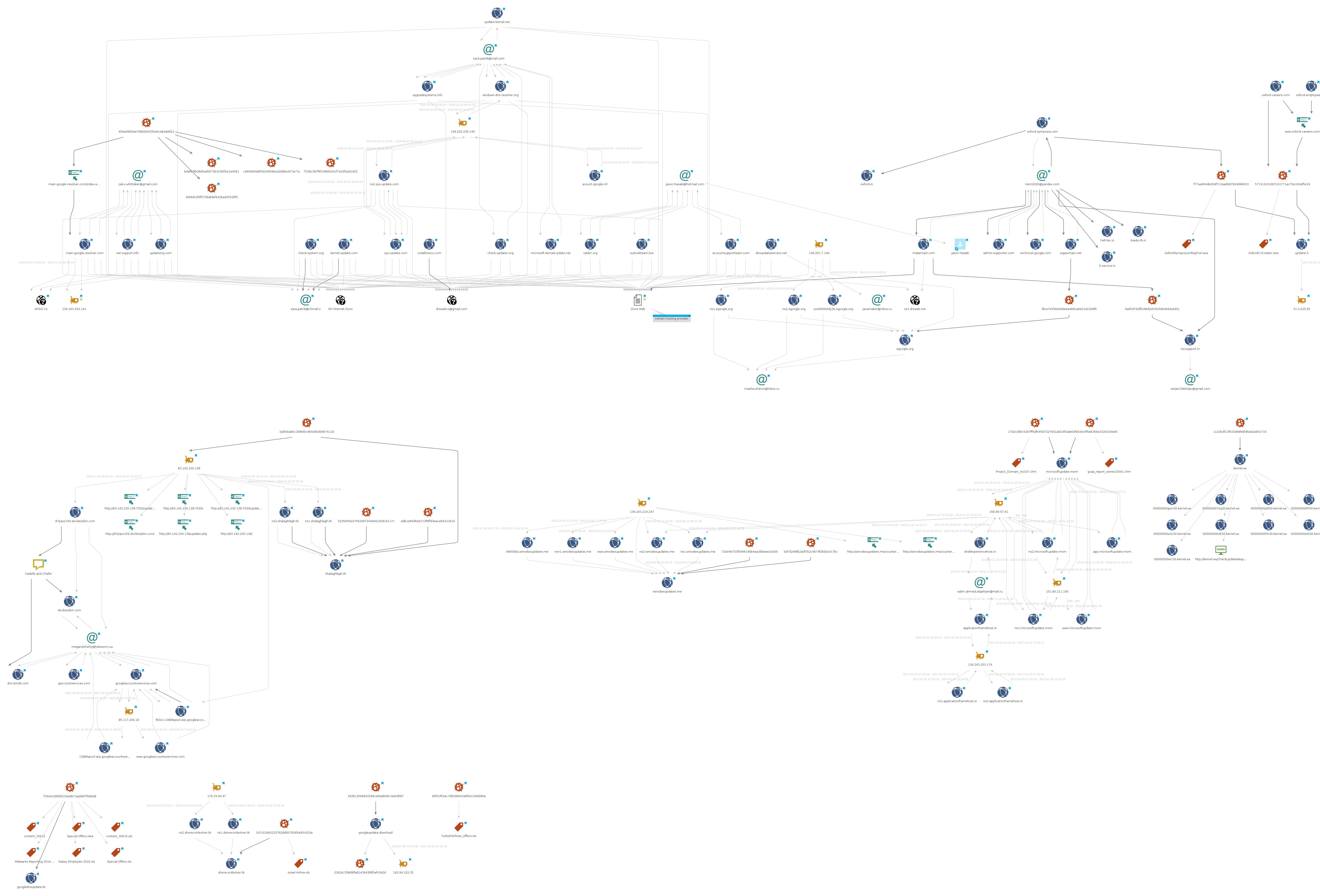

The graph below depicts the OilRig infrastructure (click to enlarge):

Acknowledgments

This research was facilitated by PassiveTotal for threat infrastructure analysis, and by MalNet for malware research . We would like to thank White-Hat, Tom Lancaster of Palo Alto Networks, Michael Yip of Stroz Friedberg, security researcher Marcus, and other security researchers and organizations who shared information and provided feedback.
